3 x BOLT Camera Motion Control Robots

The only limit is your imagination.

Camera Motion Control

Robotface are motion control specialists based in Melbourne, Australia and are fully portable to film Australia wide.

We are equipped with three of the world’s industry-standard cinema robots, the BOLT, BOLT Jnr+ & Cinebot Mini manufactured by the industry leading Mark Roberts Motion Control.

Powered by Oscar winning technology specifically for film makers to operate in sync with ARRI, RED and PHANTOM camera systems, these aren’t just ordinary robotic arm systems.

For a cinematographer, this means getting camera movement exactly how you want it and where you want it every time. For a producer, this means no time lost building complicated makeshift camera rigs and for VFX designers camera motion control means the ability to control, repeat and scale the same dynamic camera move over an over again to shoot all the plates needed so that all elements line up for that final dynamic shot.

We believe in having the right tool for the job so that you receive the very best results for your next production.

So no matter of the project brief, we’ve got you covered.



Let's do it
Key Features

  • 3 x High-speed industry-standard BOLT cinema camera robots

  • Automatic focus pulling, Zoom & Iris control

  • Camera payload 10-20kg

  • Sync with camera shutter for pixel perfect repeatable moves

  • 3-9 meters of track

  • Super fast camera movement up to 5m/s, or super slow moves

  • Fully transportable Australia wide

  • FBX Export

    Export FBX, import handheld camera motion & stream realtime camera data into Unreal Engine

Motion Control

Frequently Asked Questions

Whether you are new to motion control or a little more familiar, you will likely have questions.

Can the BOLT travel to location?

What are the power requirements?

What speeds can the cinebot go?

Here's some of the more common questions.

Find out More

So what is camera motion control?

What does a camera motion control robot do and how does it help you if you want to sell a product, shoot eye-popping live action sequence, shoot miniature sets and models, shoot dynamic time-lapse content, shoot a music video, or want if you want to duplicate real life camera moves into CGI workflows?

To answer some of these questions we’ve compiled this video with behind the scenes and actual footage from some of our projects, as well as set up a series of examples of some of the applications and principals of motion control.

Recent Motion Control projects

BOLT | VOOST Fizzy TVC

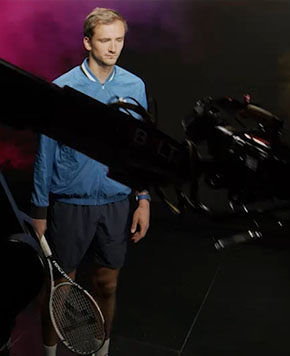

BOLT Jr+ | Australian Open

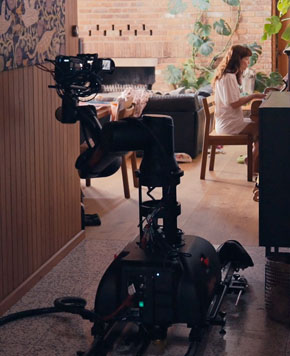

CINEBOT MINI | You Should Run

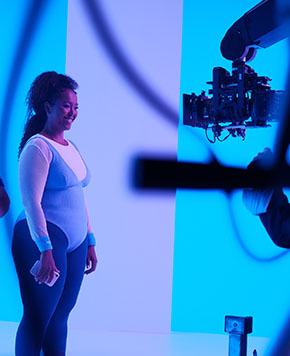

BOLT | Flybuys TVC

Compare

Compare Cinebots

BOLT

BOLT

Let's Do it
Key Features
  • Camera Payload20kg
  • High-Speed CinebotYes
  • Max Arm Reach2.0m
  • Weight600kg
  • Manual ControlNo
  • ARRI, Red, Phantom SyncYes
  • Timecode TriggerYes
  • Lens Motors3 x Motors
  • Export FBX DataYes
  • Smartphone ControlYes
  • Import PrevizYes
Operation Mode
  • Camera Payload20kg
  • Max Arm Reach2.0m
  • Max Camera Height3.5m
Transport Mode
  • Height1.95m
  • Width1.3m
  • Weight600kg
  • Length1.3m
Tracks
  • Length3 x 3.0m
  • Width91cm
  • Weight100kg per 3m
  • Speed per Second5.0m
Transportation
  • Transportation ModeTruck (3.3m Height)
  • National TravelYes
Power Requirements
  • Power Requirement3-Phase 32AMP (No RCD)
  • Battery UnitNo

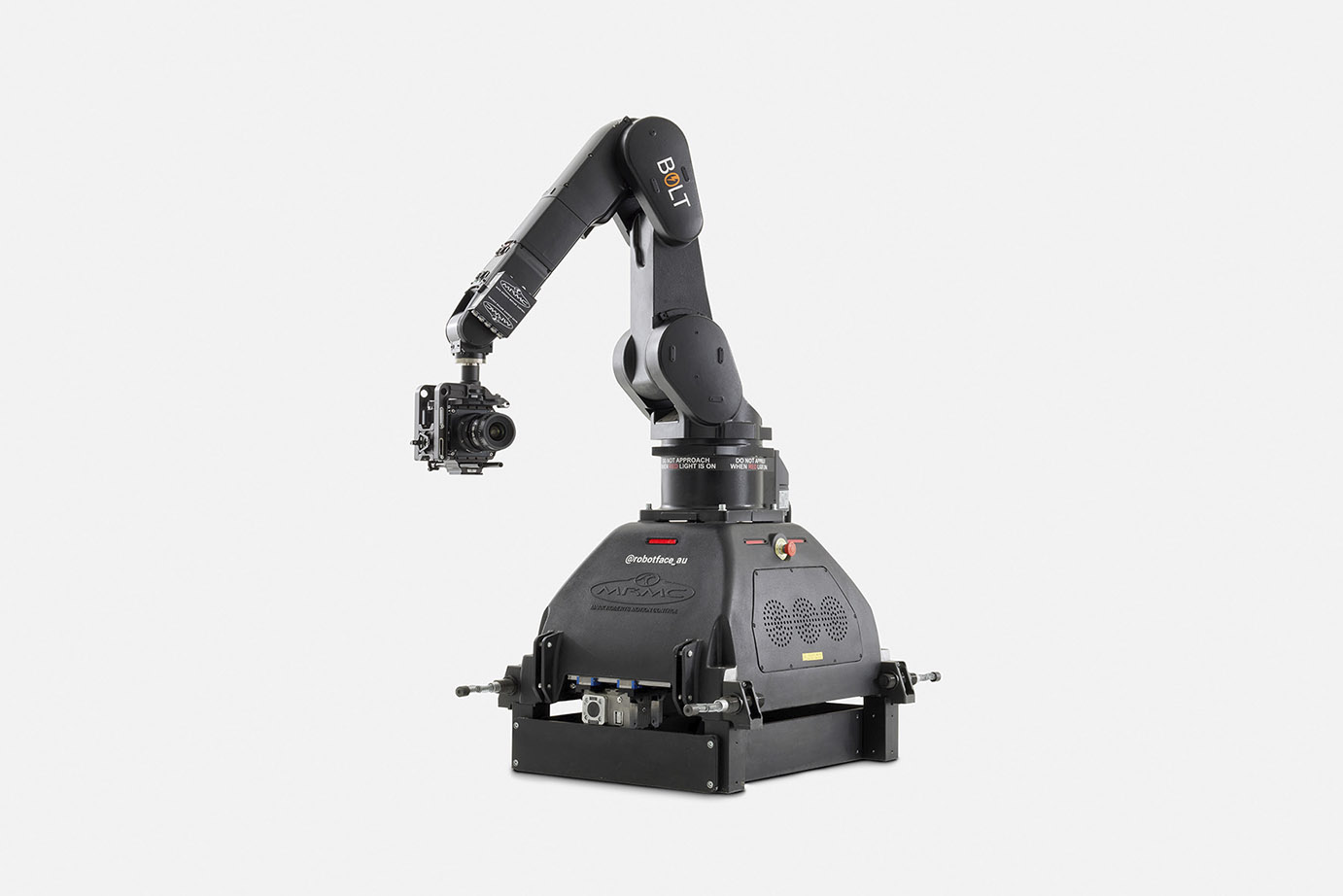

BOLT Jr+

BOLT Jr+

Let's Do it
  • Camera Payload10kg
  • High-Speed CinebotYes
  • Max Arm Reach1.4m
  • Weight370kg
  • Manual ControlNo
  • ARRI, Red, Phantom SyncYes
  • Timecode TriggerYes
  • Lens Motors3 x Motors
  • Export FBX DataYes
  • Smartphone ControlYes
  • Import PrevizYes
  • Camera Payload10kg
  • Max Arm Reach1.4m
  • Max Camera Height2.5m
  • Height1.4m
  • Width0.8m
  • Weight370kg
  • Length0.8m
  • Length3 x 3.0m
  • Width91cm
  • Weight100kg per 3m
  • Speed per Second3.0m
  • Transportation ModeTruck (3.3m Height)
  • National TravelYes
  • Power Requirement2x 16AMP GPO
  • Battery UnitNo

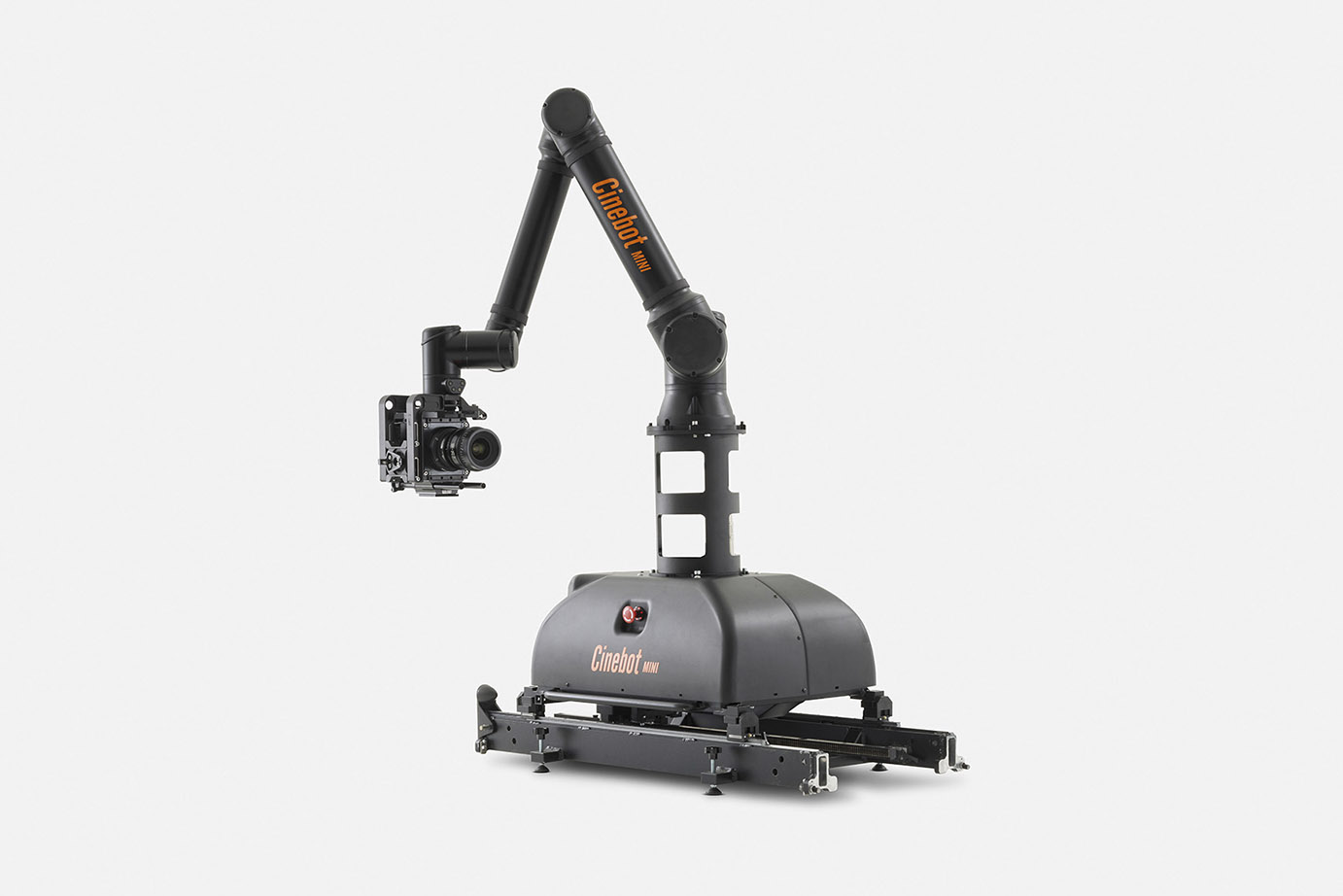

Cinebot Mini

Cinebot Mini

Let's Do it
  • Camera Payload10kg
  • High-Speed CinebotNo
  • Max Arm Reach1.4m
  • Weight65kg
  • Manual ControlYes
  • ARRI, Red, Phantom SyncYes
  • Timecode TriggerNo
  • Lens Motor2 x Motors
  • Export FBX DataYes
  • Smartphone ControlYes
  • Import PrevizYes
  • Camera Payload10kg
  • Max Arm Reach1.4m
  • Max Camera Height2.5m
  • Height1.2m
  • Width0.7m
  • Weight65kg
  • Length1.3m
  • Length1 x 3.0m
  • Width61cm
  • Weight27kg per 3m
  • Speed per Second2.0m
  • Transportation ModeVan (2.0m Height)
  • National TravelYes
  • Power Requirement1 x 10AMP GPO
  • Battery UnitYes
BOLT
BOLT Jr+
Cinebot Mini
BOLT
BOLT Jr+
Cinebot Mini
Key Features
  • Camera Payload
  • High-Speed Cinebot
  • Max Arm Reach
  • Weight
  • Manual Control
  • ARRI, Red, Phantom Sync
  • Timecode Trigger
  • Lens Motors
  • Export FBX Data
  • Smartphone Control
  • Import Previz
  • 20kg
  • Yes
  • 2.0m
  • 600kg
  • No
  • Yes
  • Yes
  • 3 x Motors
  • Yes
  • Yes
  • Yes
  • 10kg
  • Yes
  • 1.4m
  • 370kg
  • No
  • Yes
  • Yes
  • 3 x Motors
  • Yes
  • Yes
  • Yes
  • 10kg
  • No
  • 1.4m
  • 65kg
  • Yes
  • Yes
  • No
  • 2 x Motors
  • Yes
  • Yes
  • Yes
  • Camera Payload
  • Max Arm Reach
  • Max Camera Height
  • 20kg
  • 2.0m
  • 3.5m
  • 10kg
  • 1.4m
  • 2.5m
  • 10kg
  • 1.4m
  • 2.5m
  • Height
  • Width
  • Weight
  • Length
  • 1.95m
  • 1.3m
  • 600kg
  • 1.3m
  • 1.4m
  • 0.8m
  • 370kg
  • 0.8m
  • 1.2m
  • 0.7m
  • 65kg
  • 1.3m
  • Length
  • Width
  • Weight
  • Speed per Second
  • 3 x 3.0m
  • 91cm
  • 100kg per 3m
  • 5.0m
  • 3 x 3.0m
  • 91cm
  • 100kg per 3m
  • 3.0m
  • 1 x 3.0m
  • 61cm
  • 27kg per 3m
  • 2.0m
  • Transportation Mode
  • National Travel
  • Truck (3.3m Height)
  • Yes
  • Truck (3.3m Height)
  • Yes
  • Van (2.0m Height)
  • Yes
  • Power Requirement
  • Battery Unit
  • 3-Phase 32AMP (No RCD)
  • No
  • 2x 16AMP GPO
  • No
  • 1 x 10AMP GPO
  • Yes

We’re bursting with ideas on how to make your brand explode onto the screen!
